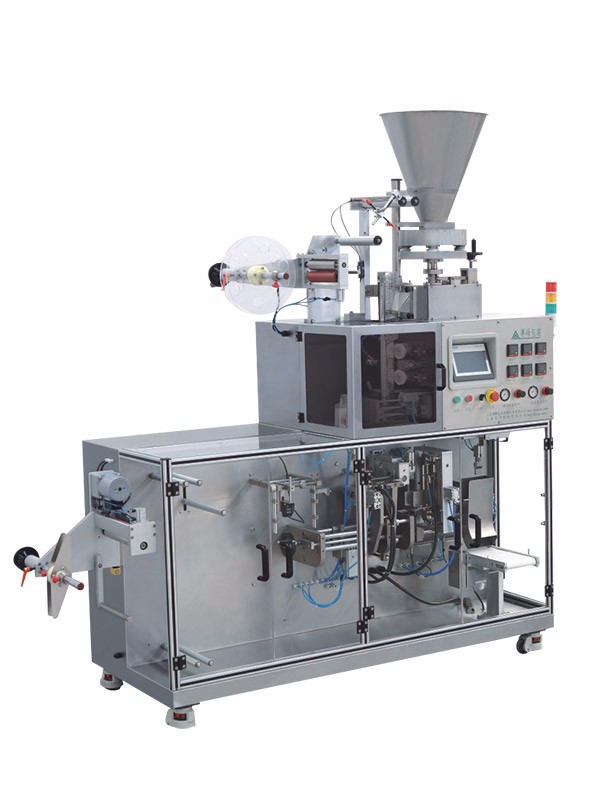

Drip coffee bag&envelope packaging machine
Drip coffee bag&envelope packaging machine
Ootional device
Coffe green tea,black tea,tea,Chinese tea,healthy tea,Chinese medicine tea,granules and so on.
Performance characteristics
1.Outside the package through the ultrasonic sealing cut off,prominent and the appearance of beautiful coffee bag,outer bag with heat sealing
2.Coffee bag inside and outside the bag machine packaging capacity of 2100-2400 bags /hour.
3 outside the box to play U-shaped easy to tear,nice,easy to use.
4.Automatic quantitative way can easily adjust the number of grams.Measurement more accurate,large adjustment range.
5.Pneumatic original with Japan SMC,electrical original with Schneider.
6.Using Siemens PLC controller.Touch screen operation,so that more stable performance,operation more simple,more humane.
7.The use of mechanical and electrical integration,the replacement of data without stopping the machine

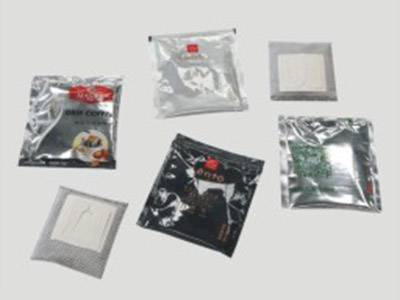

8.The coffee can be packaged into the outer bag,a bag of a bubble of independent packaging,and can be filled with nitrogen,to ensure that the product quality and freshness
9.Outer bag size: 100 * 110mm
Main technical parameter
| The number of unwinding | 2個 |
| Particle content | ≤2±0.5g/袋（其他規格可定制） |
| Packaging material requirements | 內袋：無紡布等可超聲波封口材料 外袋：可熱封復合膜 |
| Production speed | 35-50袋/分 |
| Inner bag size | 內袋：70*90（180mm）外袋：100*110（220mm） |
| Roll out diameter | ≤Φ400 |
| Wrap the core diameter of the roll | Φ76mm |
| Air pressure | ≥0.6Mpa（由定做方保證供氣） |
| Operator | 1人 |
| The motor power of the machine | 約 3.5 Kw(220V) |
| Equipment shape | L1900*W850*H2100（mm） |
| Equipment weight | 約1200kg |
